H-800C Commercial Pre-plumbed Hot Tub:
- Wide Mouth Style Skimmer (NSF Listed)
- 8 Large Hydrotherapy Jets

- 2 Top Mount Air Controls
- 2- 10" VGB Floor Drains
- 3 Return Inlets
- Tiled Depth Marker
- Marine Grade Gel Coat Delineation Markings
- Water Level Controller
Standard Mechanical Equipment Pack HCSP-2
Single Phase 240v Equipment Featuring:
- 0.5 hp Circulation Pump With Strainer
- 1.5 hp Jet Pump With Strainer
- 150 sq.ft Cartridge Filter
- 11 kw Coates Electric Heater
- Flowmeter

- 2 Inline Thermometer
- Available in 240v 1ph, 208v 3ph and 575v 3ph
All Spas are compliant with the Virginia Graeme Baker Pool & Spa Safety Act
Options
- Waterline Tile
- (Available in Blue or Grey)
- Rigid Plumbing
- Additional R12 insulation
- P-Rail w/ Flanges or P-Rail w/ Anchors

- 4" x 3" Insulated Hard Safety Cover
- (Available in Blue, Brown or Grey)
- Emergency Push-Pull Button and Audio Visual Beacon
- Underwater 12v LED Light
- Set of 2 Vac Alert SVRS's
- Electronic Countdown Timer
- Chemical Automation System w/ Erosion Feeder or Liquid Feeder
- UV Sanitation System
- Substitute for Sand Filter
- Substitute for Gas or Propane Heater
- Substitute for Electronic Water Level Controller

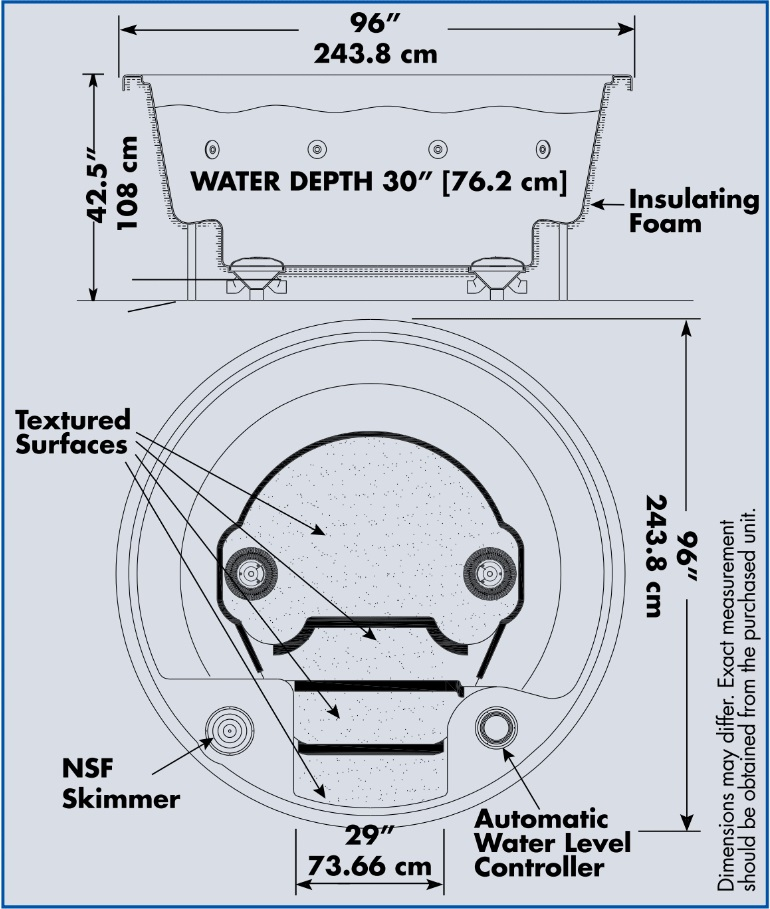

Specifications
Size: 96" / 243.8 cm
Height: 42.5" / 108 cm
Volume: 450 US Gallon / 1704 Litres
Weight Full: 4553 lbs / 2065 kg
Weight Empty: 900 lbs / 336 kg
Seating: 7-8 persons
(Some Jurisdictions may limit bather capacity)
