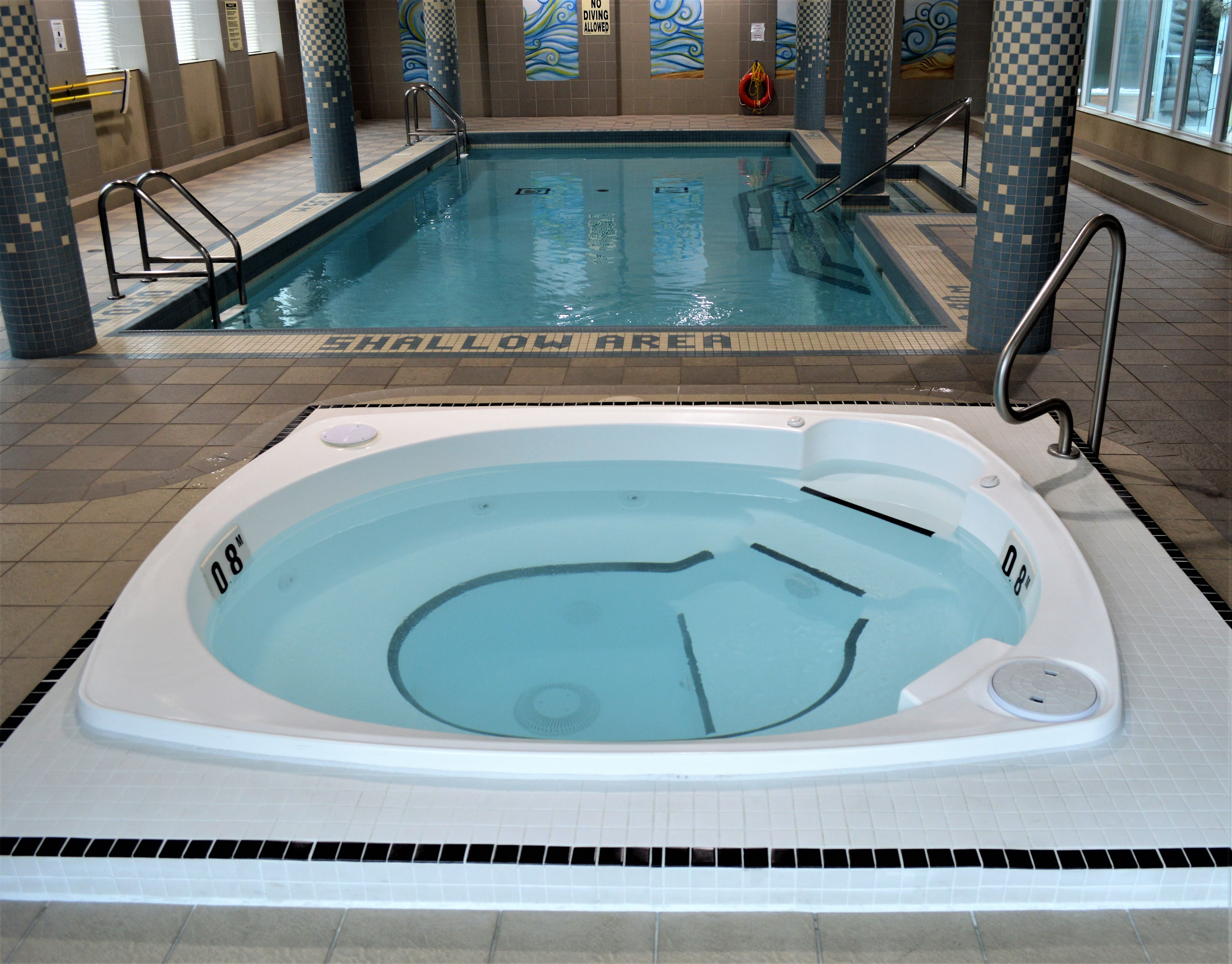

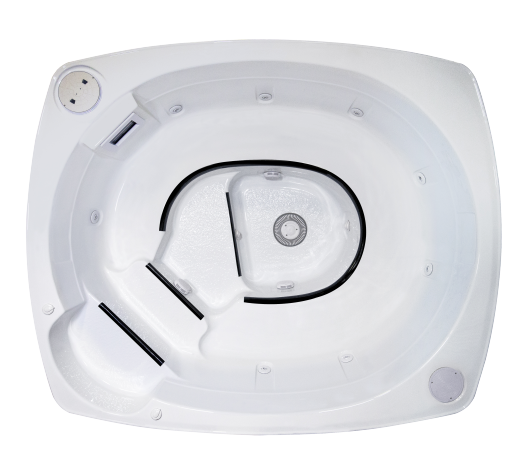

H-1000C Commercial Pre-plumbed Hot Tub:
- Wide Mouth Style Skimmer (NSF Listed)
- 8 Large Hydrotherapy Jets
- 2 Top Mount Air Controls
- 1 - 10" VGB Floor Drains
- 2 Side Wall Suction Fittings
- 2 Return Inlets
- Tiled Depth Marker
- Marine Grade Gel Coat Delineation Markings
- Water Level Controller
Standard Mechanical Equipment Pack HCSP-3
Single Phase 240v Equipment Featuring:
- 0.75 hp Circulation Pump With Strainer
- 2 hp Jet Pump With Strainer
- 150 sq.ft Cartridge Filter
- 12 kw Coates Electric Heater
- Flowmeter
- 2 Inline Thermometer
- Available in 240v 1ph, 208v 3ph and 575v 3ph
All Spas are compliant with the Virginia Graeme Baker Pool & Spa Safety Act
Options
- Waterline Tile
- (Available in Blue or Grey)
- Rigid Plumbing
- Additional R12 insulation
- P-Rail w/ Flanges or P-Rail w/ Anchor
- 4" x 3" Insulated Hard Safety Cover
- (Available in Blue, Brown or Grey)
- Emergency Push-Pull Button and Audio Visual Beacon
- Underwater 12v LED Light
- Set of 2 Vac Alert SVRS's
- Electronic Countdown Timer
- Chemical Automation System w/ Erosion Feeder or Liquid Feeder
- UV Sanitation System
- Substitute for Sand Filter
- Substitute for Gas or Propane Heater
- Substitute for Electronic Water Level Controller

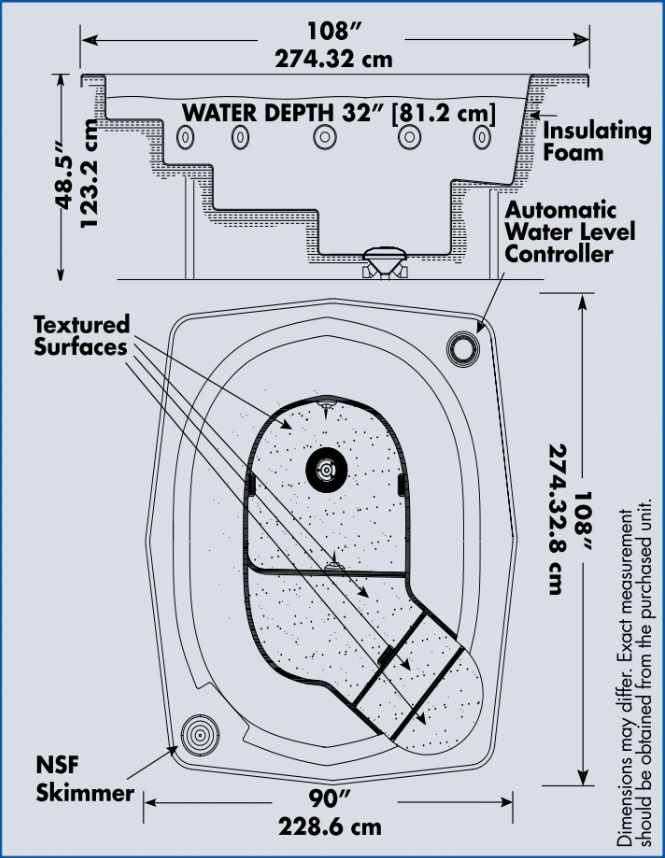

Specifications
Size: 90" c 108" / 228.6x 274.32cm
Height: 48.5" / 123.2 cm
Volume: 575 US Gallon / 2177 Litres
Weight Full: 5580 lbs / 2536 kg
Weight Empty: 1080 lbs / 490 kg
Seating: 10 persons
(Some Jurisdictions may limit bather capacity)
